Connections (Tradebyte)

Omni-Channel > Settings > Tab CONNECTIONS

Connections

Connections

  • Refresh (Refresh)
    Click this button to update the list of connections.

  • VIEW
    Click the drop-down list to select the view. All created views are displayed in the drop-down list. Click the Points (Points) button to the right of the VIEW drop-down list to display the context menu and create a view.

    • Points (Points)
      Click this button to the right of the VIEW drop-down list to display the context menu. The following menu entries are available:

      • Create create
        Click this entry to create a view. The Create view window is displayed, see Create view.

      • Rename rename
        Click this entry to rename the selected view. The Rename view window is displayed, see Rename view. This menu entry is only displayed if a view has been selected.

      • Reset reset
        Click this entry to reset all unsaved changes to the settings of the selected view. This menu entry is only displayed if a view has been selected and any changes have been made to the view settings.

      • Publish publish
        Click this entry to publish the view. This menu entry is only displayed if a view has been selected and unpublished.

      • Unpublish unpublish
        Click this entry to unpublish the view. This menu entry is only displayed if a view has been selected and published.

      • Save save
        Click this entry to save the current view settings in the selected view. This menu entry is only displayed if a view has been selected.

        When the settings of a view have been changed, an asterisk is displayed next to the view name. The asterisk is hidden as soon as the changes have been saved.

      • Delete delete
        Click this entry to delete the selected view. A confirmation window to confirm the deletion is displayed. This menu entry is only displayed if a view has been selected.

  • Columns Columns (x)
    Click this button to display the columns bar and customize the displayed columns and the order of columns in the list. The x indicates the number of columns that are currently displayed in the list.


  • Select the checkbox to display the editing toolbar. If you click the checkbox in the header, all connections in the list are selected.

  • [DELETE]
    Click this button to delete the selected connection. This button is only displayed if a single checkbox in the list of connections is selected.

    Deleting a connection is a very complex process and can therefore take a long time.

  • [SYNCHRONIZE]
    Click this button to synchronize the selected connection. This button is only displayed if a single checkbox in the list of connections is selected. The Sync triggered pop-up window is displayed.

    Sync triggered

  • [DISABLE]
    Click this button to disable the selected connection(s). This button is only displayed if the checkbox of at least one active connection is selected.

  • [ENABLE]
    Click this button to enable the selected connection(s). This button is only displayed if the checkbox of at least one inactive connection is selected.

  • Edit (Edit)
    Click this button to edit the selected Tradebyte connection. This button is only displayed if a single checkbox in the list of connections is selected. Alternatively, you can click directly a row in the list to edit a connection. The Edit connection view is displayed, see Edit Tradebyte connection.

The list displays all available connections. Depending on the settings, the displayed columns may vary. All fields are read-only.

  • Name
    Connection name.

  • Status
    Connection status. The following statuses are available:

    • Status Active
      The connection is enabled and data is being synchronized via the connection.
    • Status Inactive
      The connection is disabled and no data is being synchronized via the connection.

  • Order/Return have errors
    Indication whether errors have occurred in orders or returns. The following options are available:

    • Yes
      Errors have occurred.
    • No
      No errors have occurred.

  • Driver
    Driver name.

  • ID
    Connection identification number. The ID number is automatically assigned by the system.

  • Add (Add)
    Click this button to add a Tradebyte connection. The Create connection view is displayed, see Create Tradebyte connection.

Create view

Omni-Channel > Settings > Tab CONNECTIONS > Button Points > Menu entry create

Create view

  • Name
    Enter a name for the view.

  • [CANCEL]
    Click this button to cancel creating a view. The Create view window is closed.

  • [SAVE]
    Click this button to save the new view and display it in the VIEW drop-down list. The Create view window is closed.

Rename view

Omni-Channel > Settings > Tab CONNECTIONS > Button Points > Menu entry rename

Rename view

  • Name
    Click this field to edit the view name.

  • [CANCEL]
    Click this button to cancel renaming the view. The Rename view window is closed.

  • [SAVE]
    Click this button to save the changes and display it in the VIEW drop-down list. The Rename view window is closed.

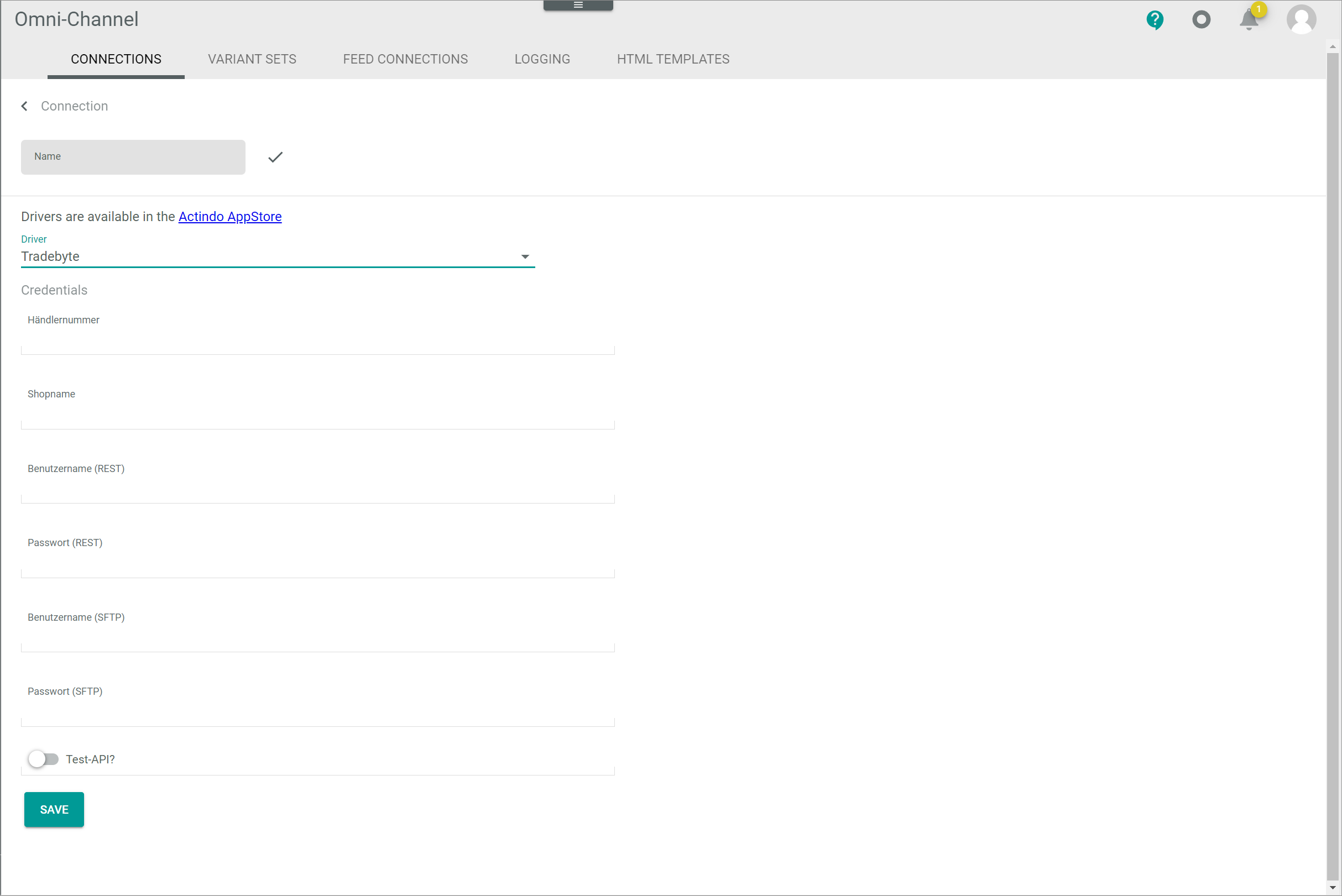

Create Tradebyte connection

Omni-Channel > Settings > Tab CONNECTIONS > Button Add

Create connection

  • Back (Back)
    Click this button to close the Create connection view and return to the connection list. All changes are rejected.

  • Name
    Enter a connection name.

  • Apply (Apply)
    Click this button to apply the entered connection name. This button is only displayed if the connection name has not yet been confirmed.

  • Edit (Edit)
    Click this button to edit the connection name. This button is only displayed if the connection name has been confirmed.

  • Driver
    Click the drop-down list and select the Tradebyte driver. All installed drivers are displayed. The Credentials section is displayed below the drop-down list.

    Drivers are licensed and must be acquired via the app store or the corresponding e-commerce partner platform. The applicable driver credentials to establish the connection are obtained when acquiring the corresponding license.

Credentials

Create Tradebyte credentials

  • Merchant number
    Enter the merchant number.

  • Shop name
    Enter the shop name.

  • Username (REST)
    Enter the username for API access.

  • Password (REST)
    Enter the password for API access.

  • Username (SFTP)
    Enter the username for server access.

  • Password (SFTP)
    Enter the password for server access.

  • Toggle Test API?
    Enable the toggle if the API to be connected corresponds to a test account. Leave the toggle disabled if the API to be connected corresponds to a productive account. By default, the toggle is disabled.

  • [SAVE]
    Click this button to save the connection.

Edit Tradebyte connection

Omni-Channel > Settings > Tab CONNECTIONS > Select Tradebyte connection

Edit Tradebyte connection

  • Back (Back)
    Click this button to close the Edit connection view and return to the connection list. All changes are rejected.

  • Name
    Connection name. Click the button Edit (Edit) to the right of the name to edit it.

  • Edit (Edit)
    Click this button to edit the connection name.

  • Apply (Apply)
    Click this button to apply the changes to the connection name. This button is only displayed if you are editing the connection name.

  • Created DD/MM/YYYY
    Creation date of the connection. This field is read-only.

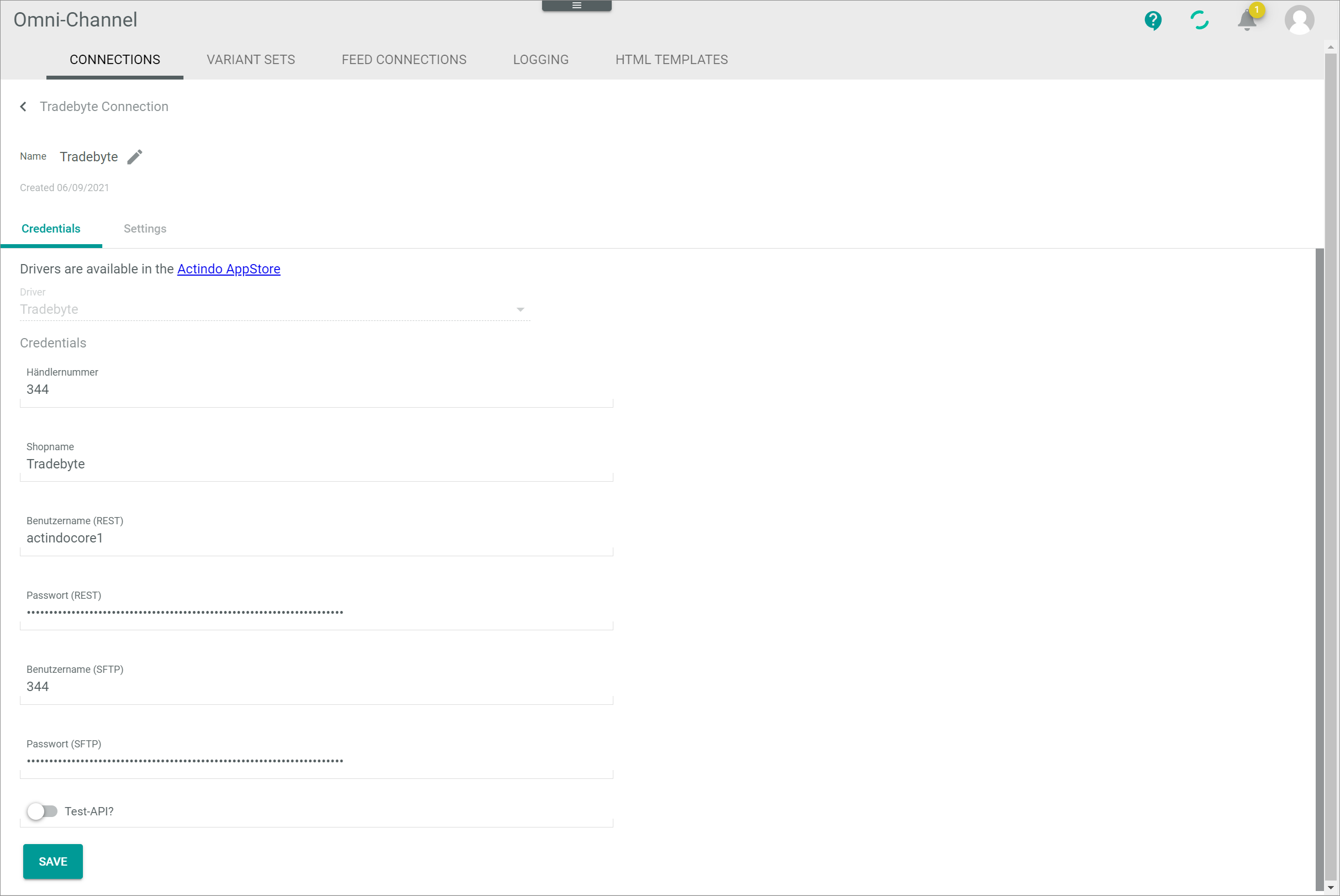

Edit Tradebyte connection – Credentials

Omni-Channel > Settings > Tab CONNECTIONS > Select Tradebyte connection > Tab Credentials

Edit Tradebyte credentials

  • Driver
    Driver name. For Tradebyte, the Tradebyte driver is displayed. This drop-down list is read-only.

Credentials

  • Merchant number
    Click this field to edit the merchant number.

  • Shop name
    Click this field to edit the shop name.

  • Username (REST)
    Click this field to edit the username for API access.

  • Password (REST)
    Click this field to edit the password for API access.

  • Username (SFTP)
    Click this field to edit the username for server access.

  • Password (SFTP)
    Click this field to edit the password for server access.

  • Toggle Test API?
    Enable the toggle if the API to be connected corresponds to a test account. Disable the toggle if the API to be connected corresponds to a productive account. By default, the toggle is disabled.

  • [SAVE]
    Click this button to save any changes made.

Edit Tradebyte connection – Settings

Omni-Channel > Settings > Tab CONNECTIONS > Select Tradebyte connection > Tab Settings

Edit Tradebyte settings

The Settings tab is composed of the following setting entries:

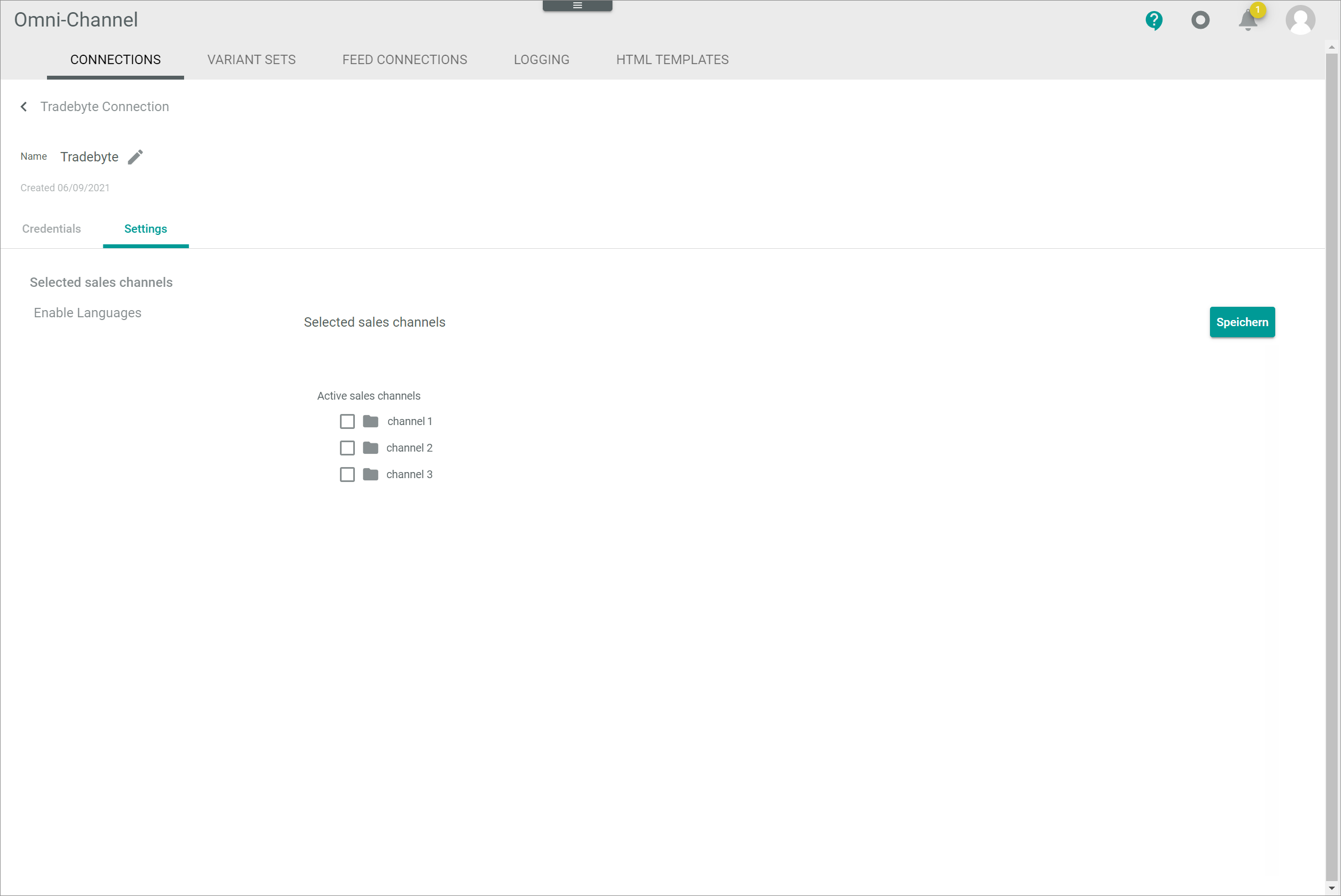

Selected sales channels

Omni-Channel > Settings > Tab CONNECTIONS > Select Tradebyte connection > Tab Settings > Menu entry Selected sales channels

Selected sales channels

Selected sales channels

  • [Save]
    Click this button to save any changes made.

  • Active sales channels
    • "Channel name"
      Select the checkboxes of the sales channels you want to activate. For each sales channel available in Tradebyte, a single checkbox is displayed.

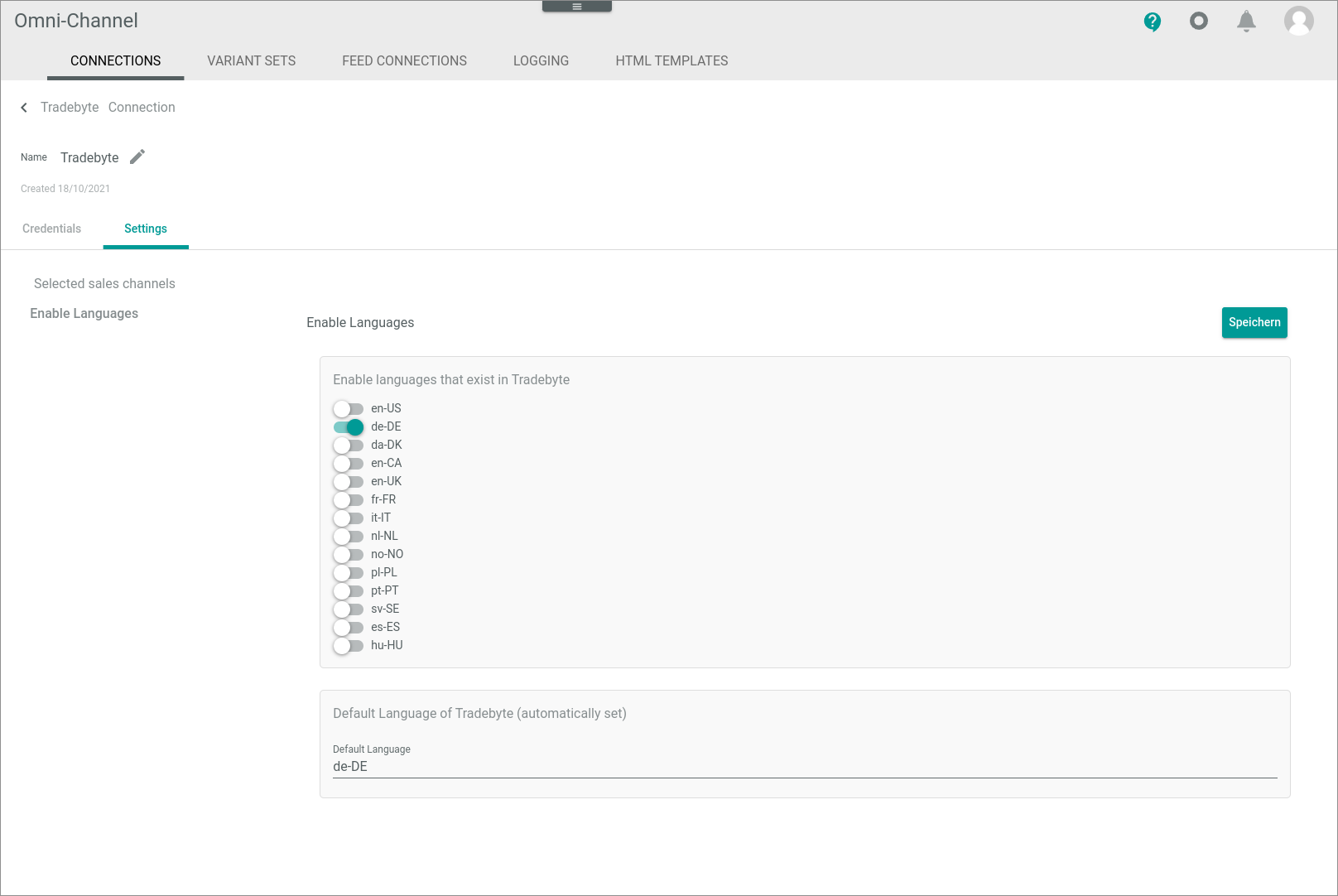

Enable languages

Omni-Channel > Settings > Tab CONNECTIONS > Select Tradebyte connection > Tab Settings > Menu entry Enable languages

Enable languages

Enable languages

  • [Save]
    Click this button to save any changes made.

  • Enable languages that exist in Tradebyte

    • Toggle Language code
      Enable the toggles of the languages you want to manage in the Actindo Core1 Platform. For each language available in Tradebyte, a single toggle is displayed.
  • Default language of Tradebyte (automatically set)
    • Default language
      The default language of Tradebyte is automatically set and cannot be edited.
