Manage BigCommerce connection

Actindo features a special installation app in the BigCommerce App Store. The Actindo Core1 DOP connector app sets up and authorizes a connection automatically.

Note, if possible, you should not delete the app in BigCommerce after creating the connection. Although deleting will not delete the connection in Omni-Channel itself, it will invalidate the access token you created when connecting to the app. If the app was deleted by mistake, either reconnect the app or enter a valid access token manually to enable the connection again.

You can only use the Actindo Core1 DOP Connector application for one connection per store. If you want to have more than one connection per store, you need to create an additional connection manually. The Store hash in the credentials of this additional connection must differ from the first one. The manual creation of a connection has no functional limitations compared to the automatic creation.

Create BigCommerce connection automatically

Create the connection using the BigCommerce driver. You will not be able to configure any other settings until the connection is established.

Prerequisites

• You have a BigCommerce customer account to log in to BigCommerce.
• You have created a BigCommerce store.
• In the Actindo Core1 Platform, you have permission to create connections in Omni-Channel.

Procedure

1. Log in to your Actindo Core1 instance on which you run the Omni-Channel module. To verify the successful creation later, it is important to be logged in.

2. In a new browser window, open the BigCommerce App Store (https://www.bigcommerce.com/apps/) and log in to your BigCommerce account using the [Log in] button in the upper right corner.
   The BigCommerce Actindo-sandbox is opened.



3. Click the Apps folder.

4. Click the Marketplace folder and select the Actindo Core1 DOP Connector app.
   The Actindo Core1 DOP Connector app entry is displayed.



   The app had not yet been released at the time the documentation was created.

   5. Click the Actindo logo.
      The app is selected. Further information is provided.



5. Click the [Install] button.
   The site for confirming the access is opened.



6. Click the [Confirm] button.
   The BigCommerce installation window is opened.



7. Enter the workspace URL of the instance on which your Omni-Channel module is running and click the [START SETUP] button.
   If the installation was successful, the BigCommerce connected window is displayed. In your instance, a new Omni-Channel connection is created, which is connected to your BigCommerce store.



8. Change to your Actindo Core1 instance and select Omni-Channel > Settings > Tab CONNECTIONS.

   • The new connection has been created, synchronized, and activated.



   • The credentials of the connection have been automatically created.



   • All related standard attributes, attribute sets, and attribute groups have been created. If required, you can adapt these objects to your needs later using the DataHub or PIM module.

   • All relevant API settings in BigCommerce are automatically created. See the Store-level API account in the BigCommerce app under Settings > API.



Create BigCommerce connection manually

Create connections manually for additional connections per store, if desired. Alternatively, you can create a connection manually in any case, for example, if you do not want to use the Actindo Core1 DOP connector app.

Prerequisite

• You have both the Store hash and the Access token provided by BigCommerce at your disposal.
• In the Actindo Core1 Platform, you have permission to create connections in Omni-Channel.

Procedure

Omni-Channel > Settings > CONNECTIONS

1. Click the (Add) button in the bottom right corner.
   The Create connection view is displayed.



2. Enter a name for the connection in the Name field.

3. Click the Driver drop-down list and select the BigCommerce driver.
   The Credentials section is displayed below the drop-down list.



4. Enter the hash key of your store in the Store hash field and the access token in the Access token field. Both data is provided by BigCommerce.

5. Click the [SAVE] button.

   • The connection will be established. The Checking credentials... notice is displayed. The Create connection view is automatically closed when the connection has been established. The initial sync has been automatically triggered.

   • The new connection has been created, synchronized, and activated.



   • All related standard attributes, attribute sets, and attribute groups have been created. If required, you can adapt these objects to your needs using the DataHub or PIM module later.

   • All relevant API settings in BigCommerce are automatically created. See the Store-level API accounts in the BigCommerce app under Settings > API.



Configure BigCommerce connection

Configure the BigCommerce connection after you have created it.

In the Omni-Channel connection settings, you can configure the Variant option type, which defines how the offer variants are presented in the store. By the Variant option type setting, you can define how your customers can select a product variant in BigCommerce. Since BigCommerce allows multiple types for variant options, the driver needs a specification how to determine the preferred type for a variant option. You can define variant option types such as drop-down, radio button, or rectangle as default for your offers in the Variant option type setting.
For specific offer types, you can use the color-swatch type that is determined in a specific way. For detailed information, see Configure color-swatch variant option.

With the Order filter setting, you can filter the orders that are to be imported from BigCommerce to Omni-Channel.
Additionally, if you have worked with BigCommerce before starting with the Actindo Core1 Platform, you can define the date or ID, from which existing orders should be imported.

The Offers setting is only relevant for the first initial import of products from BigCommerce. You can specify that only those attributes are to be imported, that are mapped to the offer by the ETL data mapping. This allows you to maintain only certain attributes.

Prerequisites

• In the Actindo Core1 Platform, you are permitted to create connections in Omni-Channel.
• A BigCommerce connection has been created.

Procedure

Ommi-Channel > Settings > Tab CONNECTIONS

1. Click the BigCommerce connection you want to edit in the list of connections.
   The Edit connection view is displayed. By default, the Credentials tab is selected.

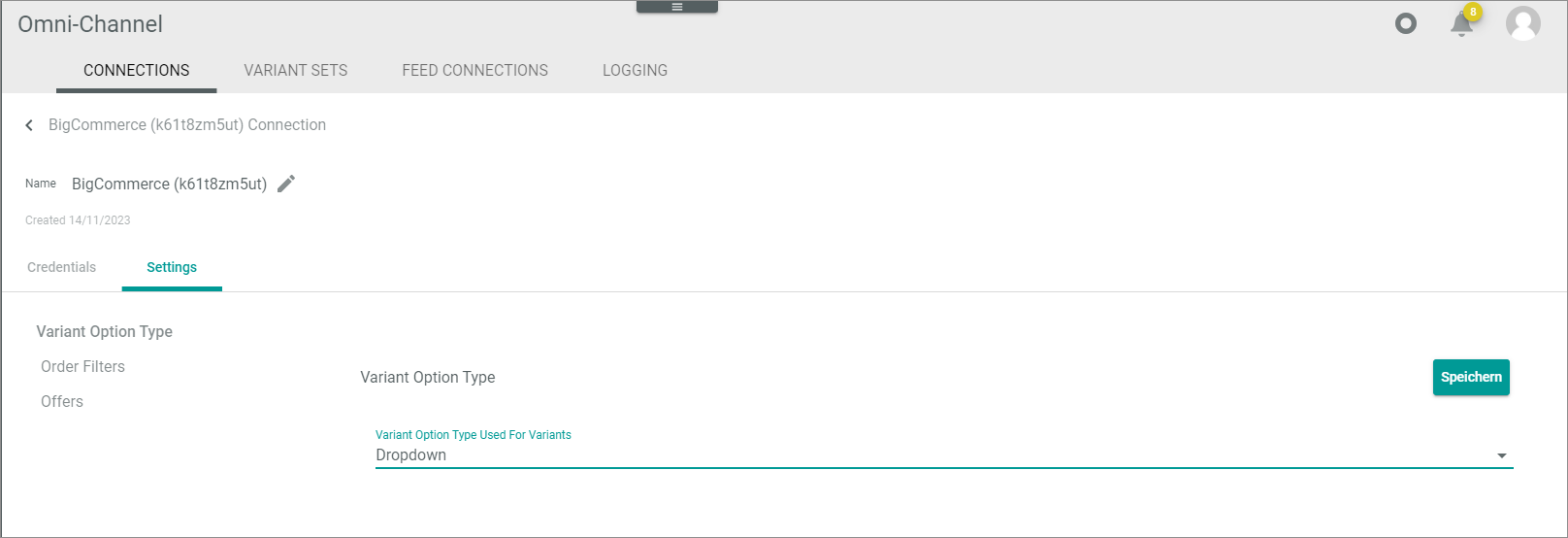

2. Click the Settings tab.
   The Variant option type setting is displayed by default.



3. Click the Variant option type drop-down list and select the variant option type you want to use. The following option types are available:	Dropdown	Meaning
   Dropdown	An offer variant is selected in a drop-down list
   Rectangles	An offer variant is selected in a small rectangle that contains the offer variant value. For example:
   Radio buttons	An offer variant is selected with a radio button.

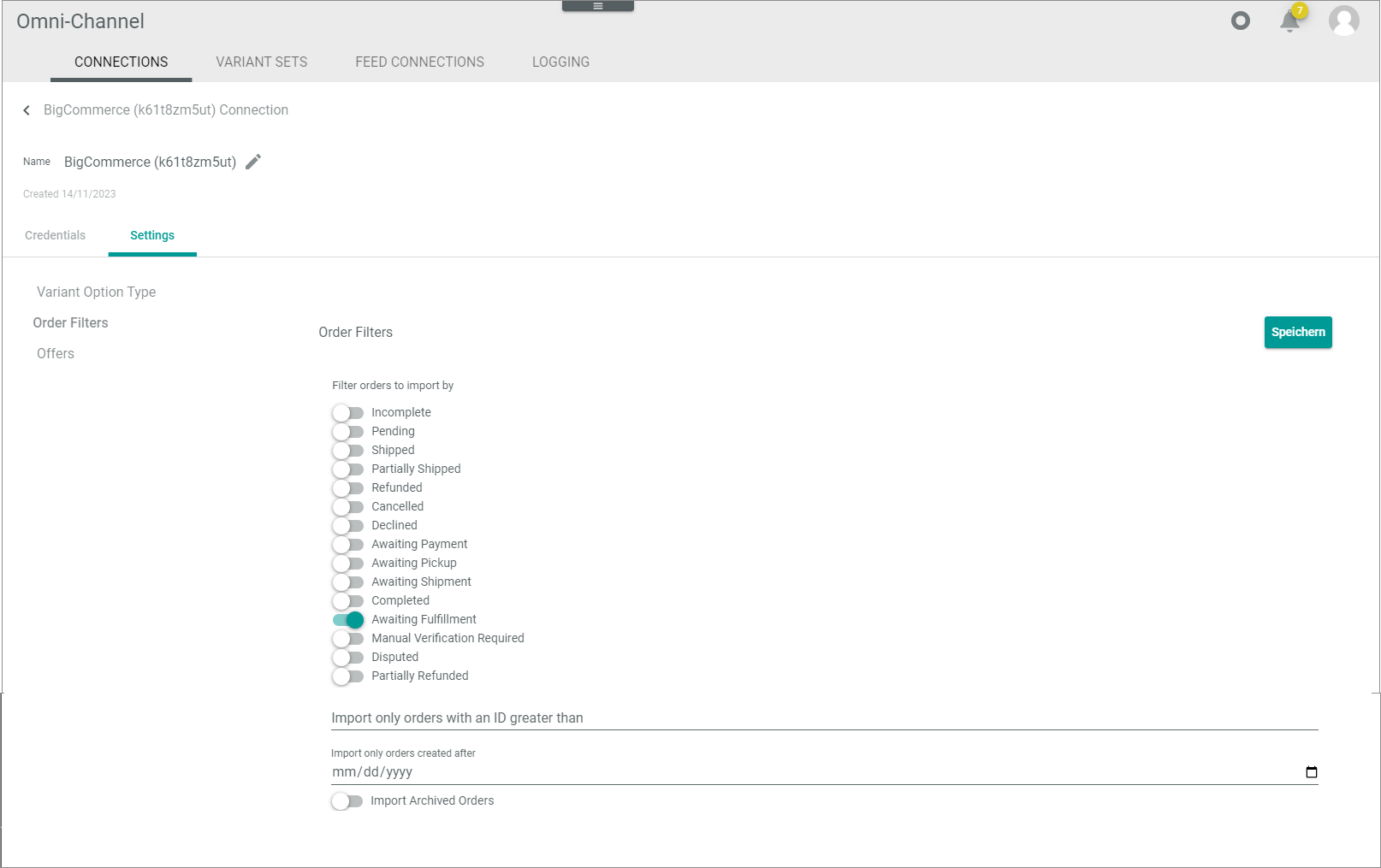

4. Click the Order filters entry.
   A list of order status is displayed.



5. Enable the toggles at the order statuses you want to import to the Actindo Core1 Platform. For detailed information on the BigCommerce order statuses, see the BigCommerce documentation under https://developer.bigcommerce.com/docs/rest-management/orders/order-status#get-all-order-statuses.

6. If desired, enter the first order ID you want to import in the Import only orders with an ID as of field. This option is only relevant if you have orders in BigCommerce that should not be imported to Actindo in general.

7. If desired, enter the date as of which you want to import the orders in the Import only orders created as of field. The date is valid from 00:00. This option is only relevant if you have orders in BigCommerce that should not be imported to Actindo in general.

8. If desired, enable the Import archived order toggle to request the import of orders that have been already archived.

9. Click Offers entry.
   The offers setting is displayed on the right side.



10. Enable the Only push mapped attributes toggle, if you want to import only those attributes that are mapped to the offer by the ETL data mapping.

11. Click the [Save] button.
    The connection settings are applied.
