Workflow core actions

To create a workflow, you must include one or several workflow actions.
In the Workflows module, a certain number of workflow actions is always preconfigured, the so-called Core actions. These core actions are used to build control flow structures in a workflow.
Other workflow actions are available depending on the plugins installed in the current system.

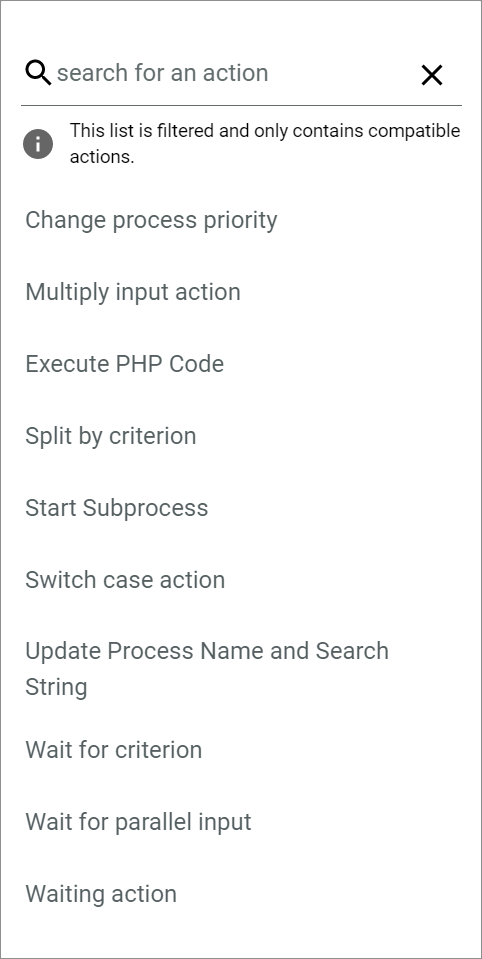

In the following, the core actions, their use and their settings are described in detail:

• Change process priority
• Multiply input action
• Execute PHP code
• Split by criterion
• Start subprocess
• Switch case action
• Update process name and search string
• Wait for criterion
• Wait for parallel input
• Waiting action

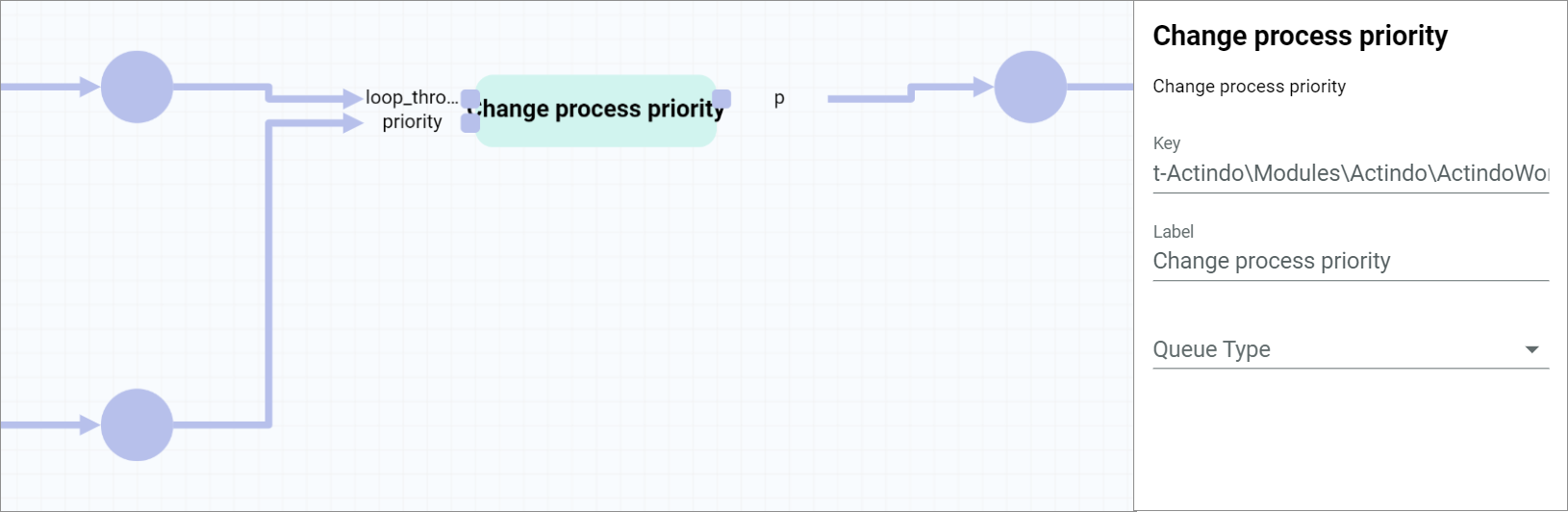

Change process priority

The Change process priority core action is used to change the preconfigured priority of the process while the process is already running.
The data runs via the loop_through input port into the workflow action and is output via the p output port. However, the data is only output when data has also been incoming via the priority input port. The input value of the priority input port must be an integer. This integer will be used as the new priority.

Configuration

This core action has no further configuration settings.

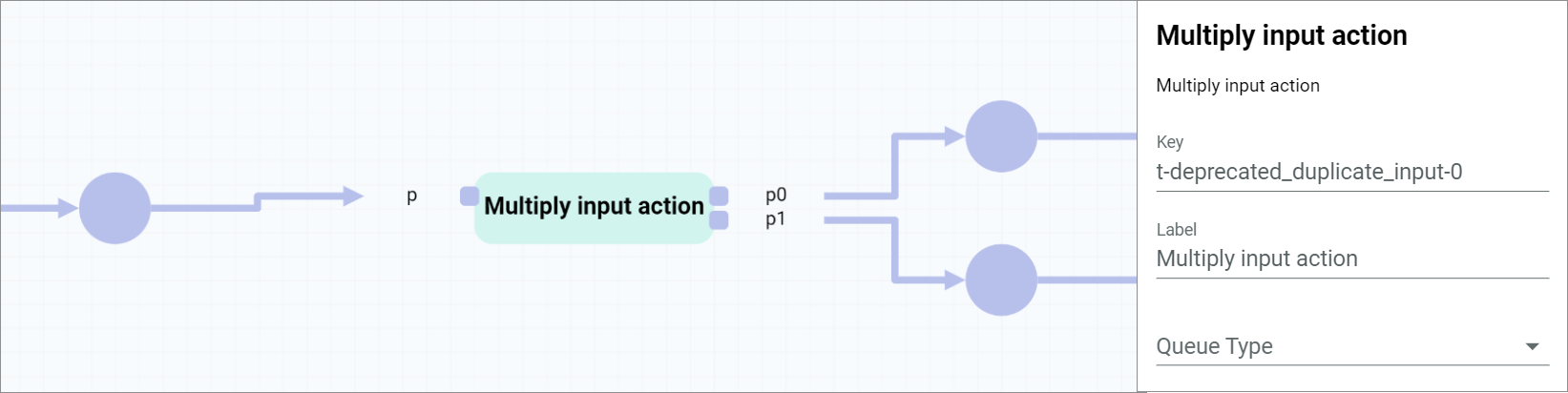

Multiply input action

The Multiply input action core action is used to output the data coming in via one input port to two output ports. This core action is often used when the same data is needed for two different purposes. To merge the duplicated data again, the Wait for parallel input core action can be used, see Wait for parallel input .
The data runs via the p input port into the workflow action and is output via both the p0 and the p1 output ports.

Configuration

This core action has no further configuration settings.

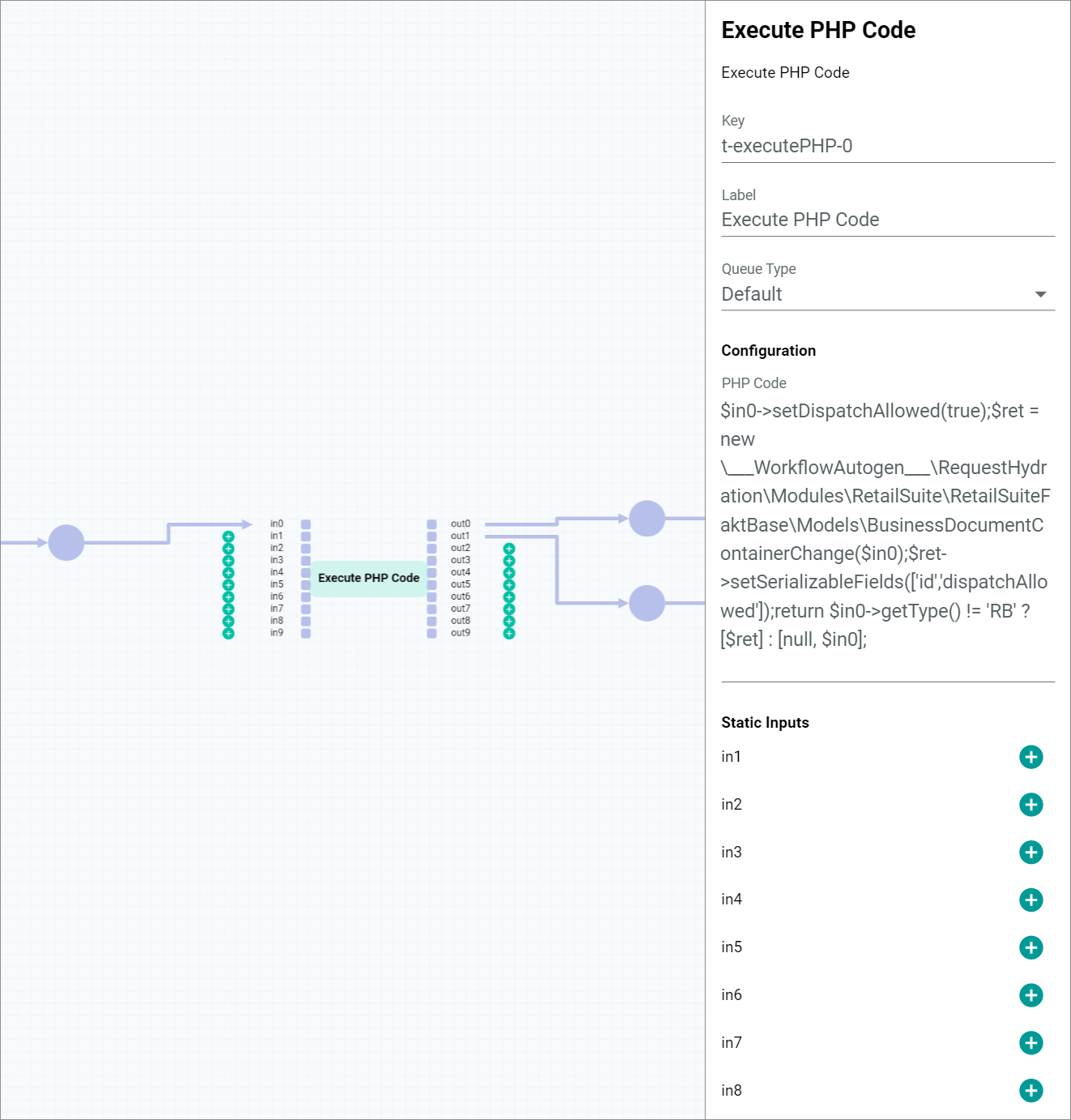

Execute PHP code

The Execute PHP code core action is used to execute a custom PHP code defined in the configuration. As the complete functionality of the PHP code is accessible, this core action enables complete variability in programming. Therefore, it is often used when more complex actions which require more logic need be executed within a workflow step.
Depending on which ports are connected to the places and which ports are defined in the PHP code, the data runs via the in0 to in9 input ports into the workflow action and is output via the out0 to out9 output ports.
It is also possible to include a static input via the unconnected input ports. These inputs must be defined in the Static inputs section in the settings side bar, see Transitions.

It is recommended to give the action a name that describes what the PHP code does.

Configuration

• PHP Code

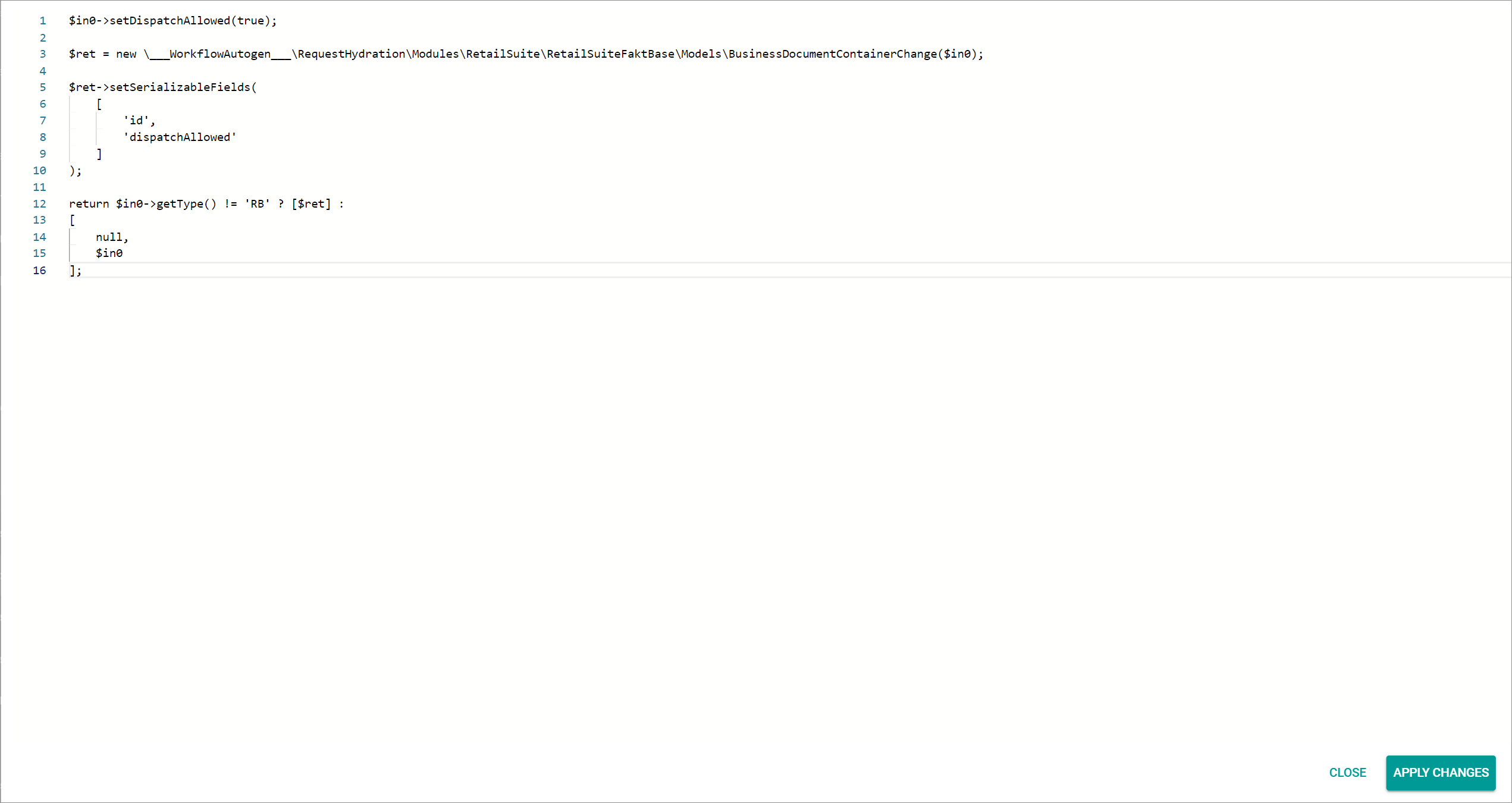

  Click this field to display the code editor and enter the desired PHP code. There are no restrictions in the PHP code. Remember to include the input ports whose data should be read using $in0 for the in0 input port, $in1 for the in1 input port, etc. as well as to specify the output via the output ports using the return [output1, output2]; return array. The first value within the array is output via the out0 output port, the second value via the out1 output port, etc.

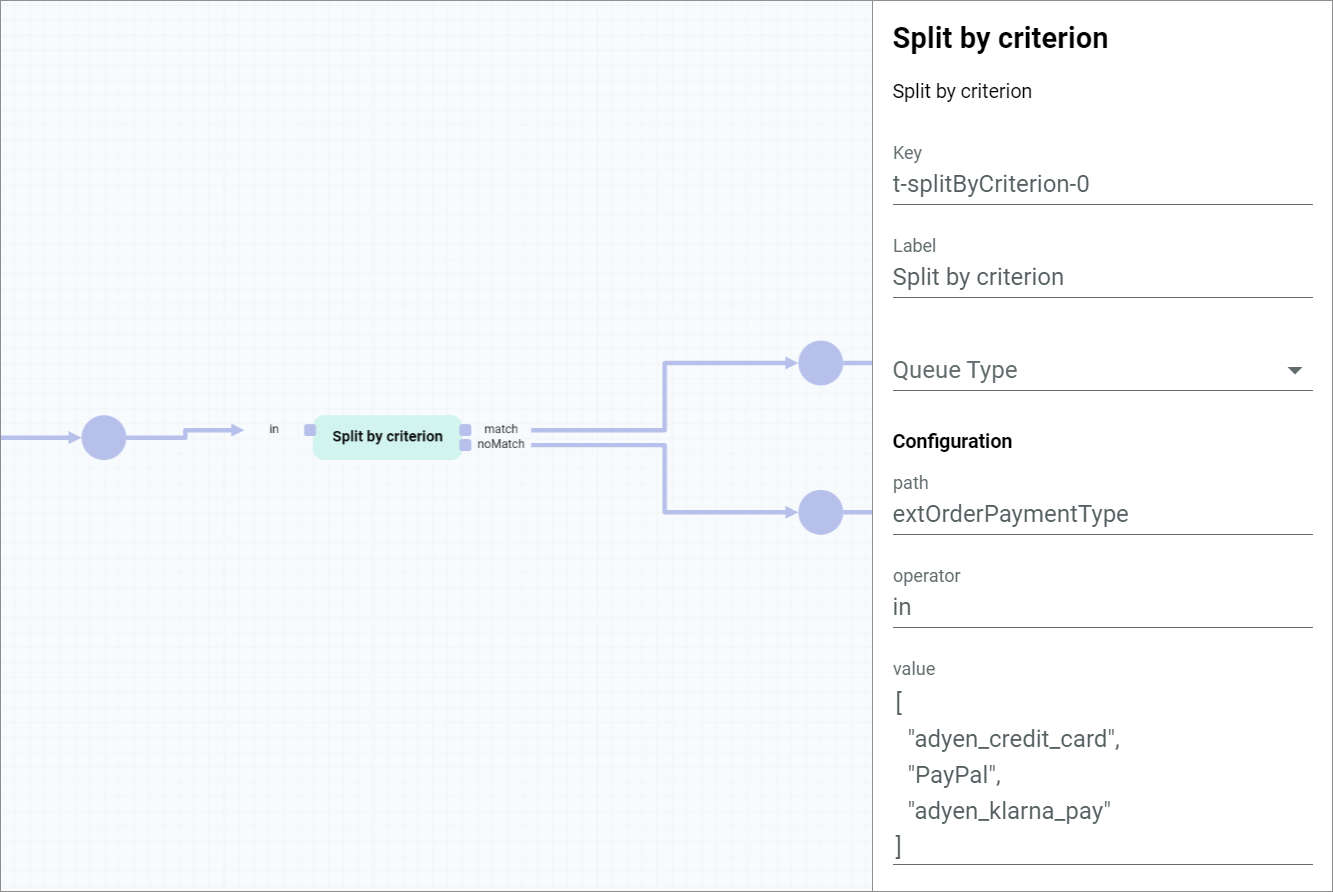

Split by criterion

The core action Split by criterion is used to compare the input value with a defined criterion and output it via a different branch depending on whether the input value matches or not. The data runs via the in input port into the workflow action and is output either via the match output port if the input value matches the criterion to be compared with, or via the noMatch output port if the input value does not match the criterion to be compared with.
The criterion to be compared with is defined in the configuration.

It is recommended to give the action a name that describes with which criterion the input value is compared.

Configuration

• Path
  Enter the path to the property of the input object to be compared with. If the input data is of a primitive type, for instance string or number, you can also leave the path blank to compare the input data directly.

  The properties of an entity you can refer to are described in the relevant API documentation.

• Operator
  Enter the applicable operator for the comparison. The following operators are available:

  • =
    It is a match if the input value equals the defined value.
  • !=
    It is a match if the input value does not equal the defined value.
  • in
    It is a match if the input value is included within the defined values. For this operator, it is possible to enter an array in the Value field.
  • notIn
    It is a match if the input value is not included within the defined values. For this operator, it is possible to enter an array in the Value field.
  • regexp
    It is a match if the input value equals the regular expression entered in the Value field.
    For detailed information about regular expressions, see https://regex101.com/.
• Value
  Enter the value to be compared with the input value. The value must be valid JSON and is type strict, for example a string must be specified as a string (\"example\"), an integer as an integer (123), and so on.

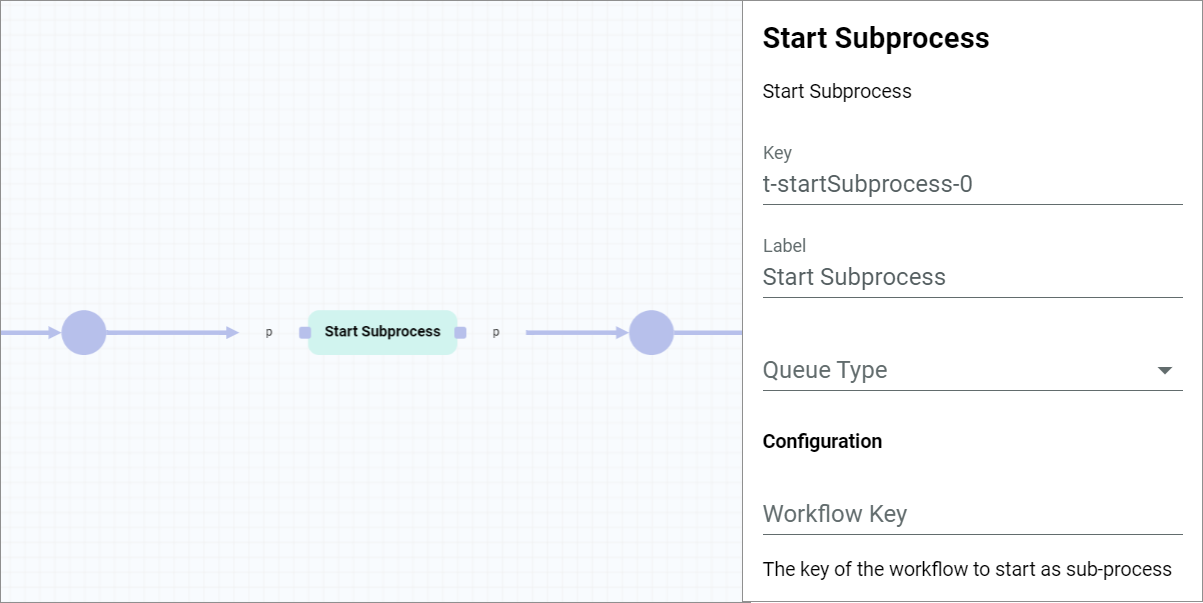

Start subprocess

The Start subprocess core action is used to start a different subprocess within the currently running process.
The data runs via the p input port into the workflow action and is output via the p output port. However, the action does not wait until the subprocess has been finished, but outputs the data after having started the subprocess. The input data is also the data put in the start place of the subprocess.
The subprocess to be started is defined in the configuration.

Configuration

• Workflow Key
  Enter the workflow key of the workflow that will be started as a subprocess. Always the latest published version of the specified workflow will be started.

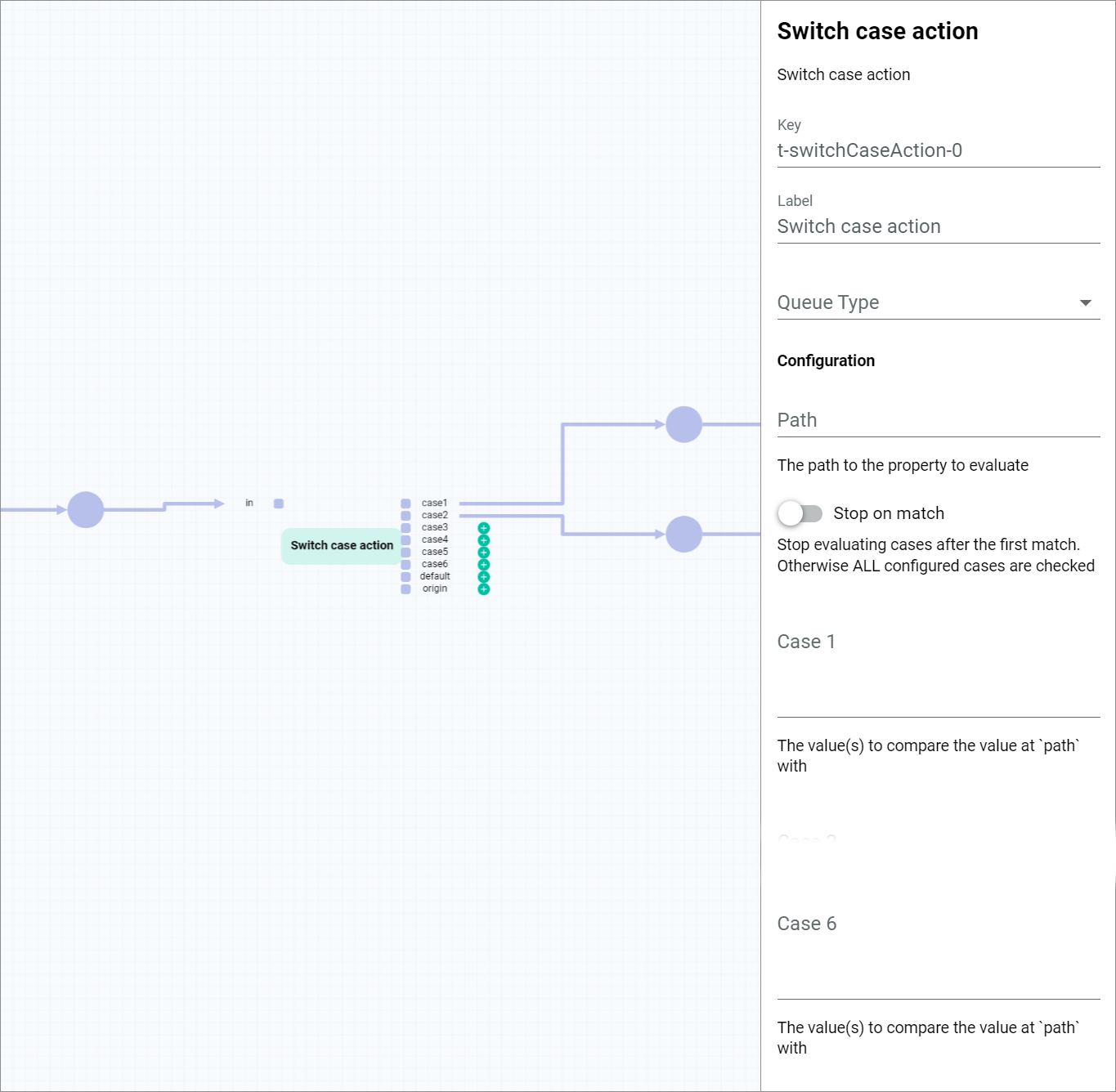

Switch case action

The Switch case action core action is used to compare the input value with up to 6 criteria and output this value via a different branch for each case. Additionally, this core action enables to output the input value via a separate branch if the input value does not match any of the specified cases or to output the input value without any match by a separate branch.
The data runs via the in input port into the workflow action and can be output via each connected output port. The origin output port must be connected and the input value is always output via this port without any further action. Additionally, if one or several of the case1 to case6 output ports are connected, the input value is compared with the criterion specified in the respective case and output via the output port of the case where the criterion matches the input value. If no criterion of the cases matches the input value, the input value is output via the default output port, or, if the default output port is not connected, the action fails.
The criteria to be compared with are defined in the configuration. Further, you can set the comparison to be stopped after a match. Otherwise all remaining cases are evaluated.

Configuration

• Path
  Enter the path to the property of the input object to be compared with. If the input data is of a primitive type, for instance string or number, you can also leave the path blank to compare the input data directly.

  The properties of an entity you can refer to are described in the relevant API documentation.

• Stop on match
  Enable this toggle to stop comparing the input value with the specified cases once the input value matches the first case. Disable the toggle to compare the input value with all specified cases, regardless of whether a case matches or not. By default, this toggle is disabled.

• Case X
  Enter the value to be compared with the input value. The value must be valid JSON and is type strict, for example a string must be specified as a string (\"example\"), an integer as an integer (123), and so on. You can enter a single value or an array with multiple values. If you enter single value, it is checked if the input value equals the specified value. If you enter an array, it is checked if the input value equals one of the values in the array.
  You can specify up to 6 different cases. The cases are checked in order, that means, first Case 1, then Case 2, etc.

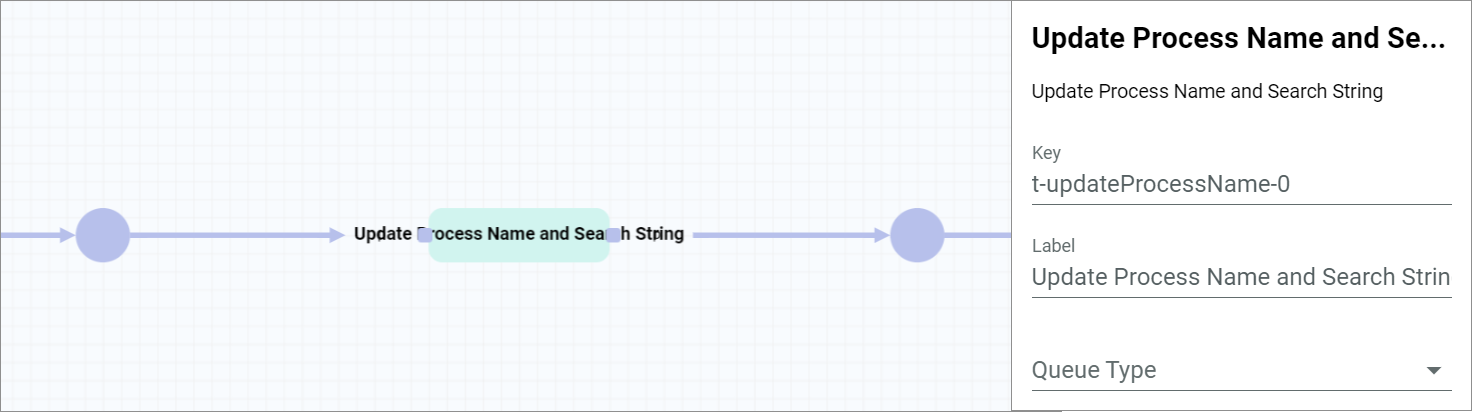

Update process name and search string

The Update process name and search string core action is used to change the preconfigured name of a process and its search string while the process is already running.
The data runs via the input port into the workflow action. The input value must be a string representation, which is replacing the current process name and its corresponding search string. The new string representation is output via the output port.

Configuration

This core action has no further configuration settings.

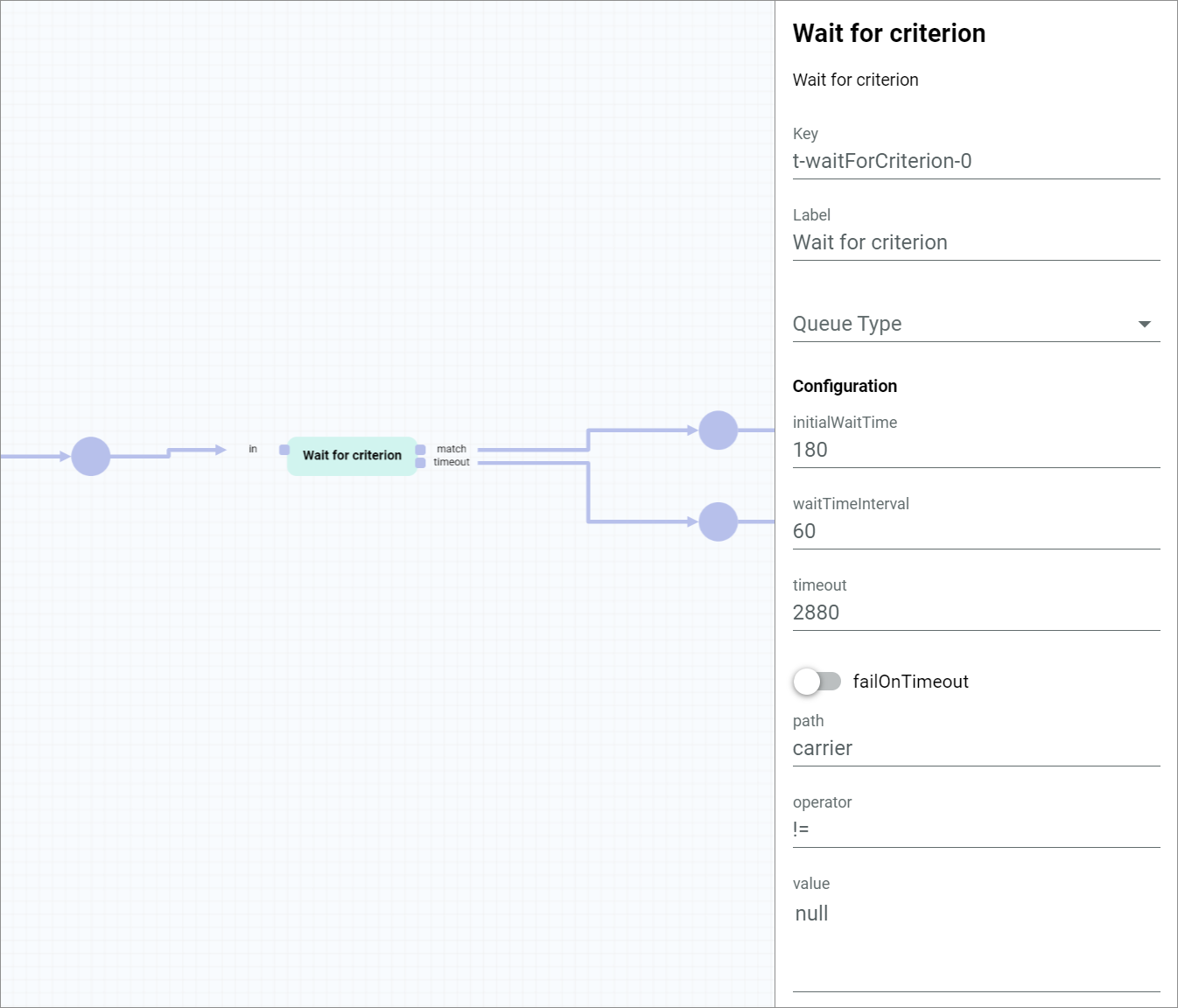

Wait for criterion

The Wait for criterion core action is used to insert a breakpoint when you must wait that the data input matches a certain criterion.
The data runs via the in input port into the workflow action and is output via the match output port once the input value matches the criterion to be compared with. If the input value does not match the criterion to be compared with after a defined timeout, the data is, depending on the configuration, output via the timeout output port, or the actions fails.
The criterion to be compared with as well as the wait time settings are defined in the configuration.

It is recommended to give the action a name that describes which input value the criterion is waiting for.

Configuration

• Initial wait time
  Enter the time in minutes to wait until the next comparison if the criterion does not initially match the input data.

  The initial wait time defines the time after the initial comparison, not until the initial comparison. The initial comparison is executed automatically when the action is triggered for the first time.

• Wait time interval
  Enter the time in minutes to wait for each additional comparison attempt if the criterion does not yet match the input data.

• Timeout
  Enter the time in minutes after which no further attempts should be started. Depending on the configuration, either the input data will be output via the timeout output port or the action will fail.

• Fail on timeout
  Enable this toggle to make the action fail after the defined timeout. Disable the toggle to output the current input value via the timeout output port after the defined timeout. By default, this toggle is disabled.

• Path
  Enter the path to the property of the input object to be compared with. Use objects or models whose values change by external influences between the tries as input type, since simple input data of a primitive type, for instance string or number, are static and will never change.

  The properties of an entity you can refer to are described in the relevant API documentation.

• Operator
  Enter the applicable operator for the comparison. The following operators are available:

  • =
    It is a match if the input value equals the defined value.
  • !=
    It is a match if the input value does not equal the defined value.
  • in
    It is a match if the input value is included within the defined values. For this operator, it is possible to enter an array in the Value field.
  • notIn
    It is a match if the input value is not included within the defined values. For this operator, it is possible to enter an array in the Value field.
  • regexp
    It is a match if the input value equals the regular expression entered in the Value field.
    For detailed information about regular expressions, see https://regex101.com/.
• Value
  Enter the value to be compared with the input value. The value must be valid JSON and is type strict, for example a string must be specified as a string (\"example\"), an integer as an integer (123), and so on.

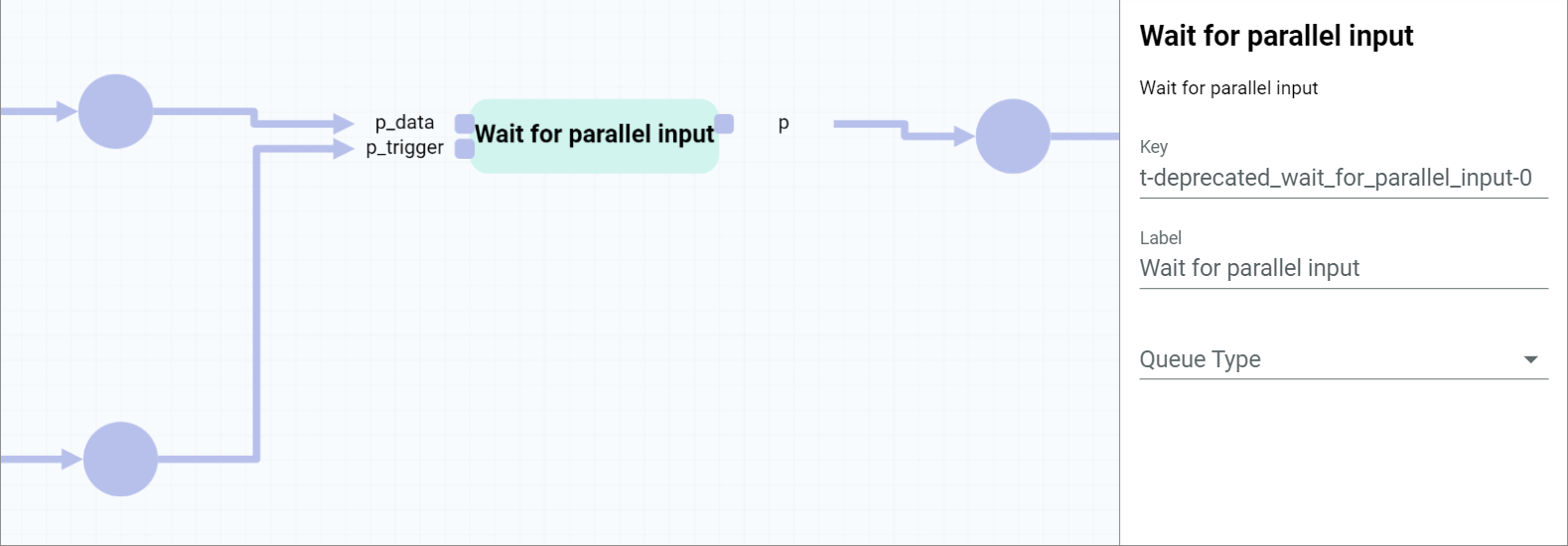

Wait for parallel input

The Wait for parallel input core action is used to insert a breakpoint when you must wait for certain data in order to synchronize branches running in parallel in a workflow.
The data runs via the p_data input port into the workflow action and is output via the p output port. However, the data is only output when data has also been incoming via the p_trigger input port.

Configuration

This core action has no further configuration settings.

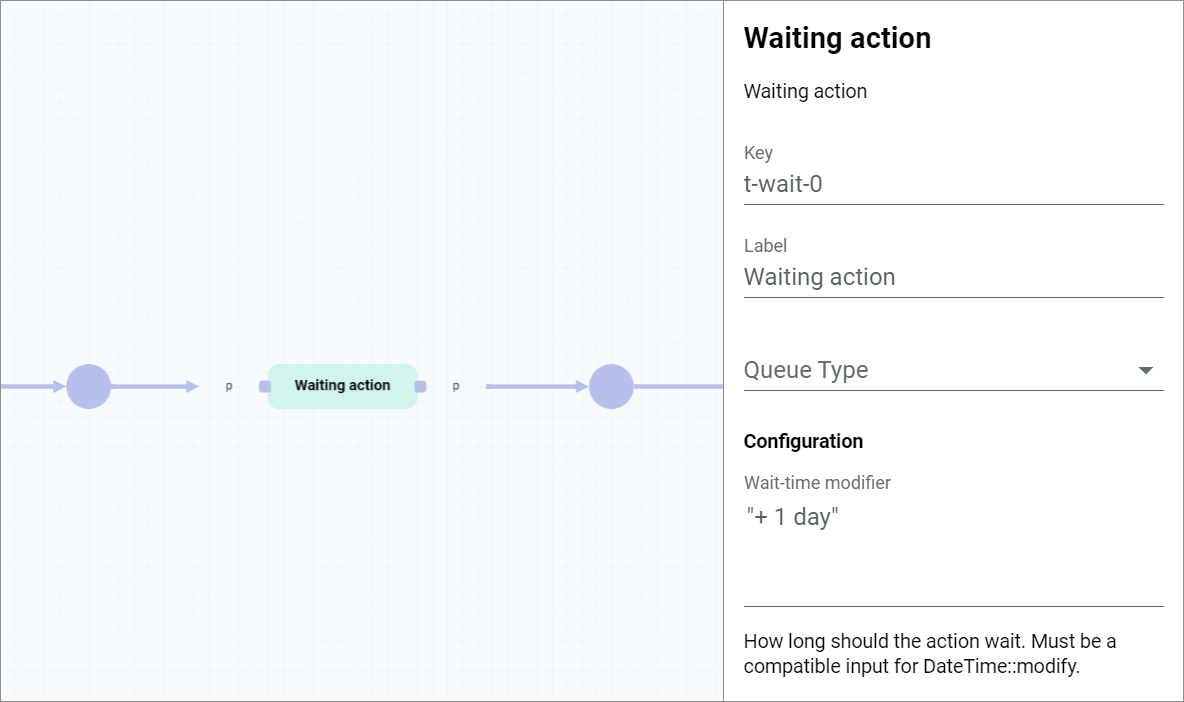

Waiting action

The Waiting action core action is used to insert a breakpoint when you want to wait for a certain time before proceeding to the next action within the process. The data runs via the p input port into the workflow action and is output via the p output port. However, the data is only output after a defined period of time.
This period of time is defined in the configuration.

Configuration

• Wait time modifier
  Enter the period of time the action must wait before the value is output. The modifier must be a valid PHP date and time format, for example "+ 1 day" .
  For detailed information about the valid PHP modifiers, see Supported PHP DateTime formats.
